P. 128

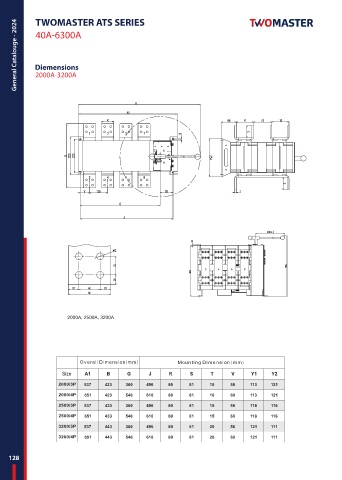

General Catalouge - 2024 2000A-3200A
40A-6300A
2000A, 2500A, 3200A
Overall Dimension （ mm) Mounting Dimension（mm)
Size A1 B G J R S T V Y1 Y2
2000/3P 537 423 360 496 80 81 10 56 113 121
2000/4P 651 423 540 610 80 81 10 60 113 121
81
2500/3P 537 433 360 496 80 81 15 56 118 116
2500/4P 651 433 540 610 80 81 15 60 118 116
3200/3P 537 443 360 496 80 81 20 56 121 111
3200/4P 651 443 540 610 80 81 20 60 121 111
128
