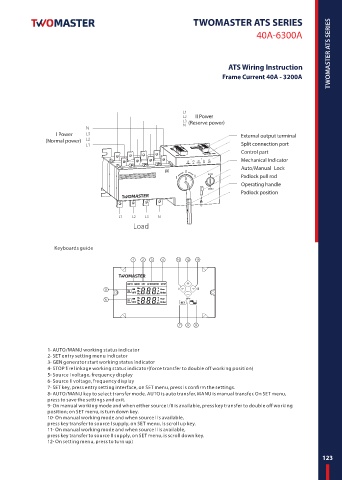

TWOMASTER ATS SERIES

40A-6300A

ATS Wiring Instruction

Frame Current 40A - 3200A

L1
L2 II Power
L3 (Reserve power)
N
N
I Power L3 External output terminal
(Normal power) L2
L1 Split connection port
Control part
II
I Mechanical Indicator
POWER ON POWER ON AUTO
Auto/Manual Lock
0
AUTO
II Padlock pull rod
I
Operating handle
MANU
Padlock position
L1 L2 L3 N
Load

Keyboards guide

I II

OFF

1- AUTO/MANU working status indicator
2- SET entry setting menu indicator
3- GEN generator start working status indicator
4- STOP fire linkage working status indicator(force transfer to double off working position)
5- Source I voltage, frequency display
6- Source II voltage, frequency display
7- SET key, press entry setting interface, on SET menu, press is confirm the settings.
8- AUTO/MANU key to select transfer mode. AUTO is auto transfer, MANU is manual transfer. On SET menu,
press to save the settings and exit.
9- On manual working mode and when either source I/II is available, press key transfer to double off working
position; on SET menu, is turn down key.
10- On manual working mode and when source I is available,
press key transfer to source I supply, on SET menu, is scroll up key.
11- On manual working mode and when source II is available,
press key transfer to source II supply, on SET menu, is scroll down key.
12- On setting menu, press to turn up)
