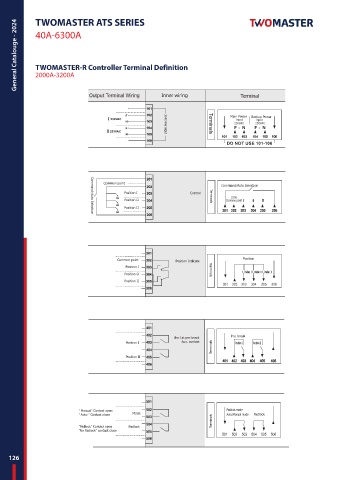

TWOMASTER-R Controller Terminal Definition
Output Terminal Wiring Inner wiring Terminal
F Main Power Backup Power
230VAC Input Input
N Device inner output Terminals
F F - N F - N
230VAC
N
DO NOT USE 101-106
Common point
Command/Auto Selection
Position I Control Terminals
Position O Common point
Position II
Command/Auto Selection
Common point Position Indicate Position
Position I
Position I Position O Position II
Position O
Terminals
Position II
the 1st pre-break Pre-break
Terminals
Position I Aux. contact Position I Position II
Position II
" Manual" Contact open Padlock mode
" Auto " Contact close Mode Auto/Manual mode Padlock
Terminals
"Padlock" Contact open Padlock
"No Padlock" contact close
