TWOMASTER SPD SERIES
TWOMASTER SPD SERIES
Surge Protective Device

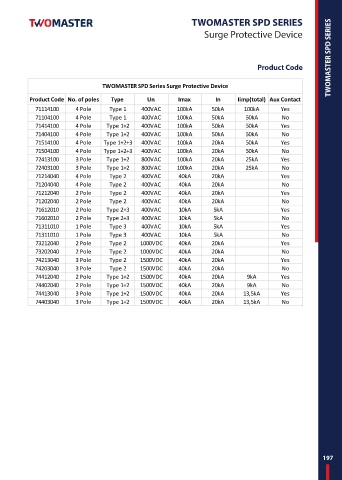

TWOMASTER SPD Series Surge Protective Device

Product Code No. of poles Type Un Imax In Iimp(total) Aux Contact
71114100 4 Pole Type 1 400VAC 100kA 50kA 100kA Yes
71104100 4 Pole Type 1 400VAC 100kA 50kA 50kA No
71414100 4 Pole Type 1+2 400VAC 100kA 50kA 50kA Yes
71404100 4 Pole Type 1+2 400VAC 100kA 50kA 50kA No
71514100 4 Pole Type 1+2+3 400VAC 100kA 20kA 50kA Yes
71504100 4 Pole Type 1+2+3 400VAC 100kA 20kA 50kA No
72413100 3 Pole Type 1+2 800VAC 100kA 20kA 25kA Yes
72403100 3 Pole Type 1+2 800VAC 100kA 20kA 25kA No
71214040 4 Pole Type 2 400VAC 40kA 20kA Yes
71204040 4 Pole Type 2 400VAC 40kA 20kA No
71212040 2 Pole Type 2 400VAC 40kA 20kA Yes
71202040 2 Pole Type 2 400VAC 40kA 20kA No
71612010 2 Pole Type 2+3 400VAC 10kA 5kA Yes
71602010 2 Pole Type 2+3 400VAC 10kA 5kA No
71311010 1 Pole Type 3 400VAC 10kA 5kA Yes
71311010 1 Pole Type 3 400VAC 10kA 5kA No
73212040 2 Pole Type 2 1000VDC 40kA 20kA Yes
73202040 2 Pole Type 2 1000VDC 40kA 20kA No
74213040 3 Pole Type 2 1500VDC 40kA 20kA Yes
74203040 3 Pole Type 2 1500VDC 40kA 20kA No
74412040 2 Pole Type 1+2 1500VDC 40kA 20kA 9kA Yes
74402040 2 Pole Type 1+2 1500VDC 40kA 20kA 9kA No
74413040 3 Pole Type 1+2 1500VDC 40kA 20kA 13,5kA Yes
74403040 3 Pole Type 1+2 1500VDC 40kA 20kA 13,5kA No

197
