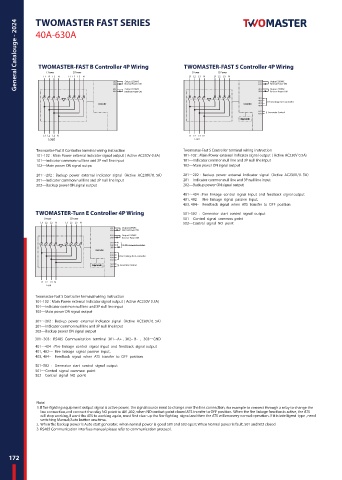

General Catalouge - 2024 TWOMASTER FAST SERIES TWOMASTER-FAST S Controller 4P Wiring

40A-630A

TWOMASTER-FAST B Controller 4P Wiring
I Power II Power
I Power II Power
L1 L2 L3 N
L1 L2 L3 N
Output 220VAC
Normal Power ON
Normal Power ON
Output 220VAC
Output 220VAC
Reserve Power ON L1 L2 L3 N L1 L2 L3 N Output 220VAC
Reserve Power ON
Fire Linkage for S controller
Controller Controller
Generator Control
Display Controller
L1 L2 L3 N L1 L2 L3 N
Load Load
Twomaster-Fast B Controller terminal wiring instruction Twomaster-Fast S Controller terminal wiring instruction
101-102 : Main Power external Indicator signal output ( Active AC230V 0.5A) 101-102 : Main Power external Indicator signal output ( Active AC230V 0.5A)
101—Indicator common null line and 3P null line input 101—Indicator common null line and 3P null line input
102—Main power ON signal outpu 102—Main power ON signal output
201～202：Backup power external indicator signal (Active AC230V/0.5A) 201～202：Backup power external indicator signal (Active AC230V/0.5A)
201—Indicator common null line and 3P null line input 201—Indicator common null line and 3P null line input
202—Backup power ON signal output 202—Backup power ON signal output
401～404 : Fire linkage control signal input and feedback signal output
401,402-- Fire linkage signal passive input,
403,404– Feedback signal when ATS transfer to OFF position
TWOMASTER-Turn E Controller 4P Wiring 501-502 : Generator start control signal output
I Power II Power 501--Control signal common point
L1 L2 L3 N L1 L2 L3 N 502--Control signal NO point
Output 220VAC
Normal Power ON
Output 220VAC
Reserve Power ON
A +
B - RS 485 Communication interface
303 GND
Controller
Fire Linkage for S controller
Display Controller Generator Control

L1 L2 L3 N
Load
Twomaster-Fast S Controller terminal wiring instruction
101-102 : Main Power external Indicator signal output ( Active AC230V 0.5A)
101—Indicator common null line and 3P null line input
102—Main power ON signal output
201～202：Backup power external indicator signal (Active AC230V/0.5A)
201—Indicator common null line and 3P null line input
202—Backup power ON signal output
301~303: RS485 Communication terminal 301--A+ , 302– B- , 303--GND
401～404 : Fire linkage control signal input and feedback signal output
401,402-- Fire linkage signal passive input,
403,404– Feedback signal when ATS transfer to OFF position
501-502 : Generator start control signal output
501--Control signal common point
502--Control signal NO point

1.If fire-fighting equipment output signal is active power, the signal source need to change over the line connection, for example to connect through a relay to change the
line connection,and connect the relay NO point to 401,402, when NO contact point closed ATS transfer to OFF position. When the fire linkage function is active, the ATS
will stop working,if want the ATS to working again, must first clear up the fire-fighting signal and then the ATS will recovery normal operation. If it is intelligent type , need
switching Manual/Auto button one time.
2. When the backup power is Auto start generator, when normal power is good 501 and 502 open; When Normal power is fault, 501 and 502 closed
3. RS485 Communication interface manual please refer to communication protocol.
